KLD-TSC Series Thyristor Switch

Thyristor switching switch can respond in real time to the rapidly changing reactive power demand, and the zero-crossing switching function protects the compensation components.

PRODUCT OVERVIEW

There are many equipments with rapid and frequent load changes in the industry. However, AC contactors can not meet the immediate needs of the reactive power switching of the system, thus thyristor fast compensation switching device that adopts the operational concept of "zero-crossing switching" can be applied, which can realize the fast switching without inrush current and arcing to reduce the interferece of inductive reactive power on the power grid.

KLD-TSC series thyristor switch is characterized by no mechanical wear and tear and no noise during operation, and has the advantage of practically no transient process. It means that the equipment has the smallest delay for power factor improvement and the control system ensures the capacitor banks of all segments switch on or off in the shortest time of only one cycle.

It is mainly applied to fast and frequent changes in reactive power, and scenarios with inrush current limit and voltage fluctuations. The product has built-in thermal protection, and LED indicators for switching display.

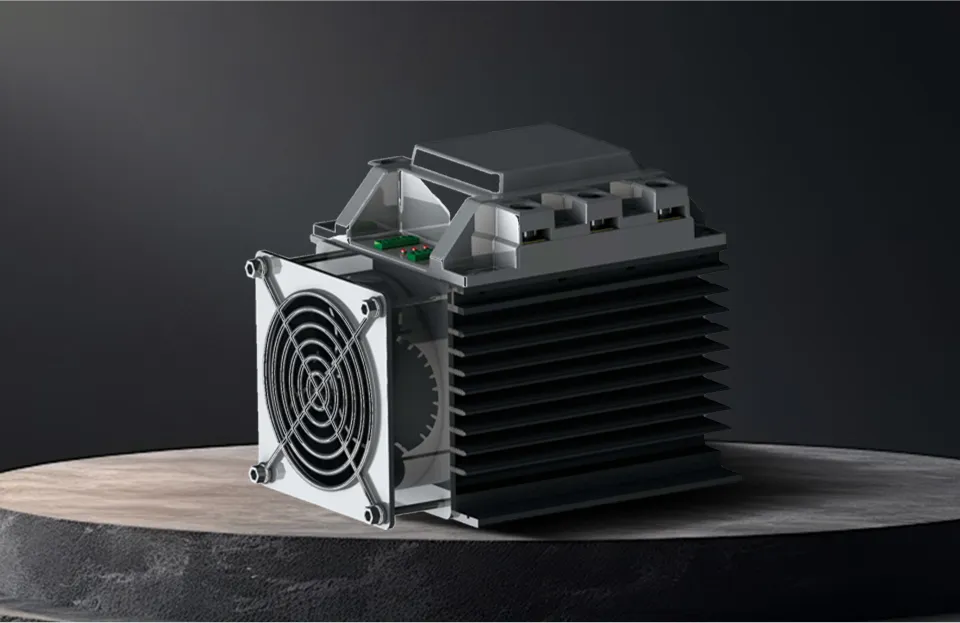

FAST ZERO-CROSSING SWITCHING WITH BUILT-IN OVER-TEMPERATURE PROTECTION FUNCTION

Integrated structure makes the installation process more convenient, and over-temperature protection function makes the use more safe.

No inrush current for zero-crossing switching, built-in over-temperature protection, frequent switching, no noise, integrated and convenient installation, fully sturdy and durable cast structure, automatic start/stop built-in cooling fan, display of the switching status by LED indicator.

Integrated structure — Integrated assembly, small size, easy for installation, maintenance and replacement.

Advanced technology — Zero-crossing switching mode avoids the impact of surge on the system, realizing fast and frequent switching in 1-20ms.

Status indication — LED indicates the switching status and visualizes the operation status.

Self-protection function — Built-in over-temperature protection function, and it automatically cuts off when the temperature exceeds 80℃.

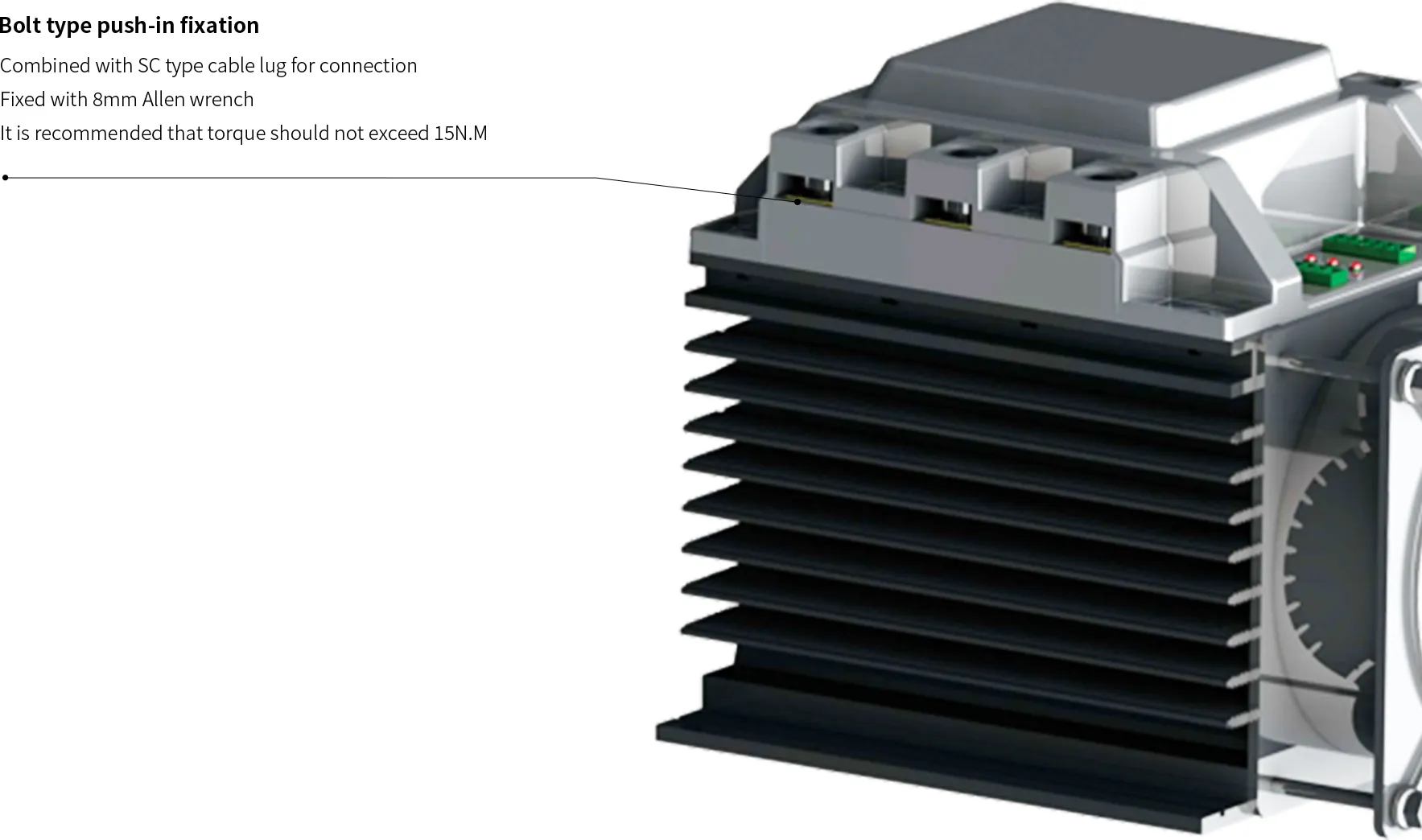

BOLT TYPE PUSH-IN WIRING

Combined with SC type cable lug to make the connection between primary conductor and switch more tight and secure.

Bolt type push-in fixation combined with SC type cable lug for connection. Fixed with 8mm Allen wrench. It is recommended that torque should not exceed 15N.M.

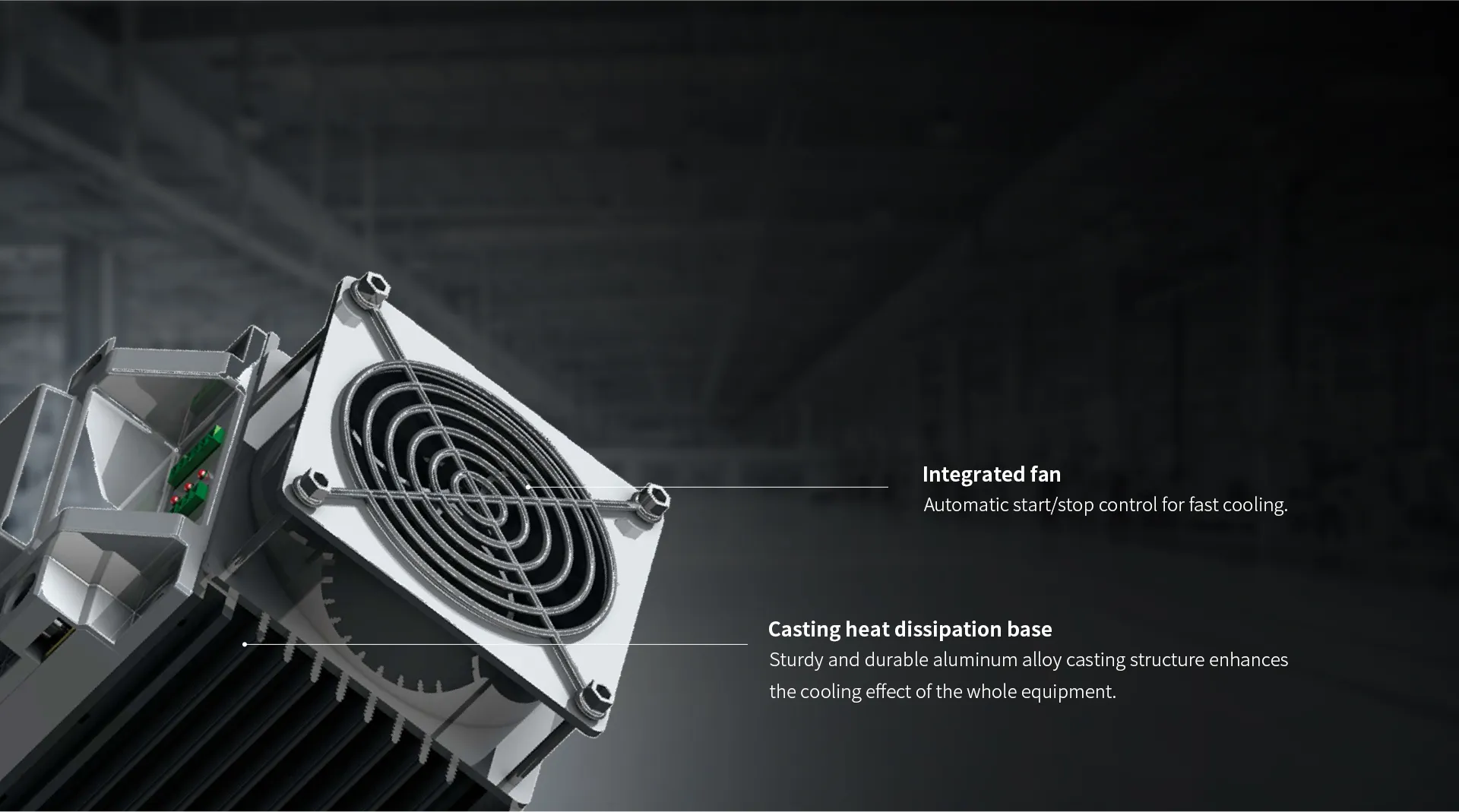

SUPERIOR HEAT DISSIPATION PERFORMANCE

Integrated cooling fan with automatic start/stop function, along with the large aluminum alloy cooling base, accelerates the heat dissipation process.

The integrated cooling fan with automatic start/stop function, along with the large aluminum alloy cooling base, accelerates the heat dissipation process, ensuring reliable operation even under high load conditions.

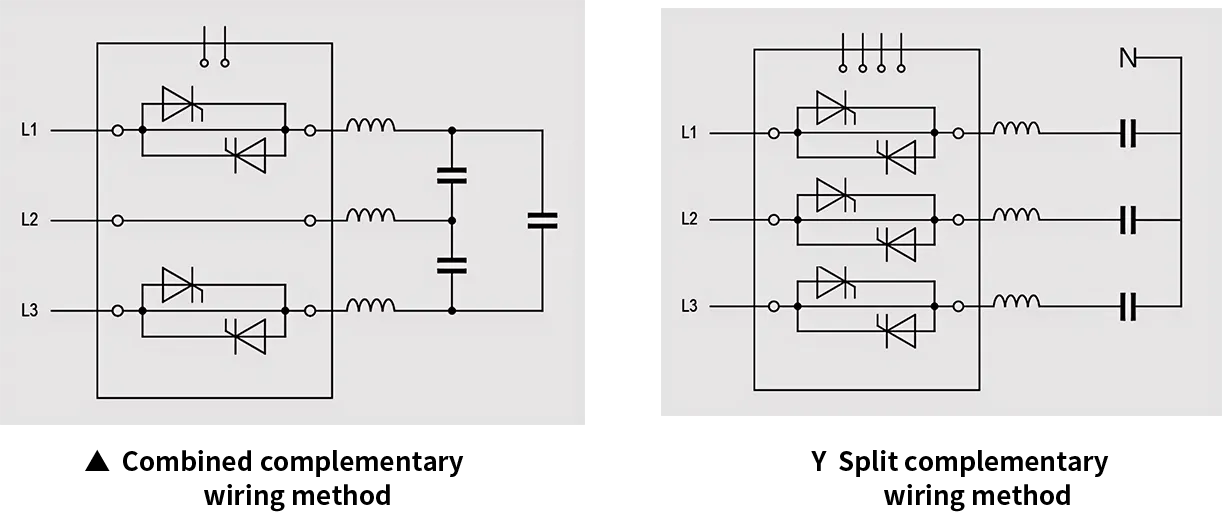

MEET DIFFERENT COMPENSATION REQUIREMENTS

Three-phase thyristor switch adheres to the principle of 2 controls and 3 switchings, thus phase B will not be converted.

Three-phase thyristor switch adheres to the principle of 2 controls and 3 switchings, thus phase B will not be converted, and each phase of the switch can be controlled independently to realize single-phase compensation.

Technical Parameters

Rated voltage	230~690V，50/60Hz
Rated capacity	15~60kvar
Response time	1~20ms
Drive voltage	DC 12V
Protection degree	IP20 (other can be customized)
Temperature protection	Fan controls at 40°C, switches off the module at 80°C
Ambient temperature	-25ºC~+50ºC
Relative humidity	Max.95%
Altitude	Conventional 2000 meters, higher altitude can be customized

Technical Parameters

Rated voltage: 230~690V，50/60Hz
Rated capacity: 15~60kvar
Response time: 1~20ms
Drive voltage: DC 12V
Protection class: IP20 (other can be customized)
Temperature protection: Fan controls at 40°C, switches off the module at 80°C
Ambient temperature: -25°C~+50°C
Relative humidity: Max.95%
Altitude: Conventional 2000 meters, higher altitude can be customized

Selection Table

KLD-TSC Series

Model	Capacity（kvar）	Application	Over-temperature protection	System voltage（V）
Single‑phase
KLD-TSC15-1-2010X	15	Split-phase dynamic switching	Provided	400
KLD-TSC30-1-2010X	30	Split-phase dynamic switching	Provided	400
KLD-TSC45-1-2010X	45	Split-phase dynamic switching	Provided	400
Three‑phase
KLD-TSC12.5-3-2010X	12.5	Three-phase dynamic switching	Provided	400
KLD-TSC15-3-2010X	15	Three-phase dynamic switching	Provided	400
KLD-TSC20-3-2010X	20	Three-phase dynamic switching	Provided	400
KLD-TSC25-3-2010X	25	Three-phase dynamic switching	Provided	400
KLD-TSC30-3-2010X	30	Three-phase dynamic switching	Provided	400
KLD-TSC40-3-2010X	40	Three-phase dynamic switching	Provided	400
KLD-TSC50-3-2010X	50	Three-phase dynamic switching	Provided	400
KLD-TSC60-3-2010X	60	Three-phase dynamic switching	Provided	400

Selection Table

KLD-TSC Series

Single‑phase

Capacity（kvar）：15
Application：Split-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：30
Application：Split-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：45
Application：Split-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Three‑phase

Capacity（kvar）：12.5
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：15
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：20
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：25
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：30
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：40
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：50
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400

Capacity（kvar）：60
Application：Three-phase dynamic switching
Over-temperature protection：Provided
System voltage（V）：400
